9/64″-G10 (3.5mm) G Series Laser Welding Machine
$4,999.00
- Weights start at 30 lbs.
- Ergonomic Gun
- 1070 nm Wave length
- 10m cable
- Weld/Seam cleaning
Basic Advantages
The DenaliWeld Jet 1000 is a compact, lightweight, and versatile laser welding solution, designed for precision and portability.
Patented CUAL Mosaic Laser Source: Ensures reliable continuous operation in a wide temperature range of -10°C to 40°C (14°F to 104°F) for consistent performance in diverse environments.
- Modular Design: Simplified maintenanceand easy repairs with a modular structure for enhanced serviceability.
- Ultra-Lightweight & Portable: Weighing only 5 pounds (22 kg), the Jet 1000is the smallest and lightest portable laser welder in its class—perfect for on-site and remote applications.
- Dual-Function Capability: Combines welding and seam cleaning functions in a single machine, providing efficiency and versatility for various tasks.
DenaliWeld Laser Source
Experience precision and power with the DenaliWeld Laser Source—delivering accurate output and consistently operating at full power.
- Patented CUAL Mosaic Laser Source: Ensures continuous, reliable performance across a wide temperature range of -10℃ to 40℃ (14℉ to 104℉), maintaining stability under demanding conditions.
- Advanced Laser Control System: Designed in-house by DenaliWeld, this system produces a smooth output curve, enhancing weld quality and delivering superior performance.
Built for accuracy, durability, and efficiency—DenaliWeld sets the standard for high-performance laser technology.
DenaliWeld Welding Control System
Engineered for ease of use and safety, the DenaliWeld Welding Control System simplifies laser welding operations while providing advanced protection for users and observers.

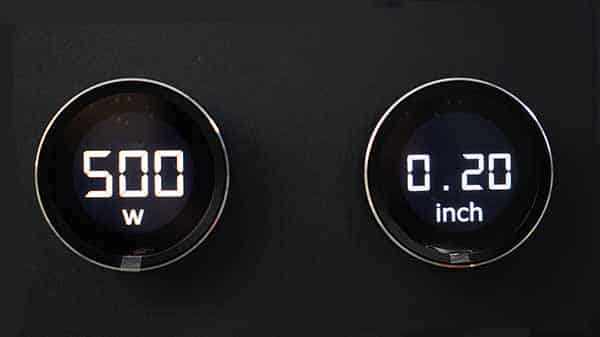

- User-Friendly Operation: All parameters are pre-setfor quick setup—easily adjust laser power with the turn of a knob, making operation intuitive and efficient.
- Enhanced Safety Features: Built-in safety settingsprovide greater protection for both operators and bystanders, ensuring a secure working environment.
- Minimal Training Required: No need to be an experienced welder—the system is designed for quick learning and can be operated after simple training, making it accessible to both new and experienced users.
DenaliWeld Laser Welding Head
Designed for versatility and ease of use, the DenaliWeld Laser Welding Head combines advanced features with an ergonomic design to deliver precise and efficient performance.
- 2-in-1 Multifunctional Design: Combines weldingand seam cleaning functions in a single laser head, increasing efficiency and versatility for diverse applications.
- Intuitive Display with Status Indicators: Built-in indicator lightsprovide real-time monitoring of the machine’s status, ensuring smooth operation and quick diagnostics.
- Air-Cooled Design for Stability: Features an individual air-cooled channelto maintain stable performance, even during extended operation.
- Ergonomic Welding Head: Comfortably designed for long-term use, reducing operator fatigue while ensuring precision control.

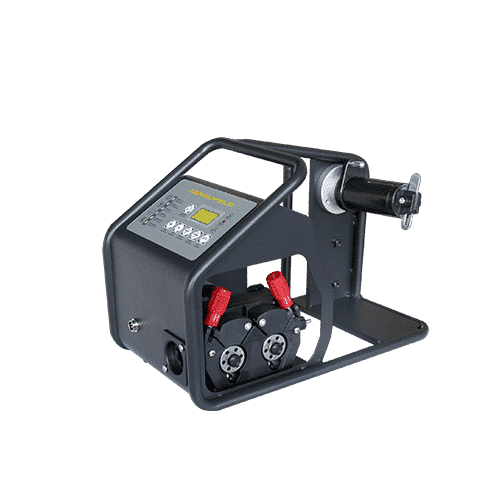

DenaliWeld Wire Feeder
Engineered for efficiency and ease of use, the DenaliWeld Wire Feeder seamlessly integrates with your welding system, enhancing precision and productivity.
- Enhanced Wire Capacity: Newly designed to feed wire up to 2 mm (5/64 inches), accommodating a wide rangeof welding applications.
- Seamless Integration: Specifically designed to complementDenaliWeld laser welding machines, ensuring optimal performance and smooth operation.
- User-Friendly Operation: Equipped with a physical control button for easy operation, even while wearing welding gloves, allowing for quick adjustments and efficient handling.
| Item | G12-25 |
| Operating System | Welding/Seam Clening |
| Laser Wavelength | 1060-1100 NM |
| Fiber Length | Approx. 16ft (4.85m) |
| Operating Mode | Continuous/Modulated |
| Oscillation Operation Mode | Spots, Line |
| Positioning | Laser red dot |
| Air Pressure | 10-15L/min |
| Voltage | 208-230V |
| Frequency | 50/60 HZ |
| Current | 10A |
| Focus Lenght | 150mm |
| Welding Speed | 0.5"/sec (13.5mm) |
| Cooling System | Air cooling |
| Laser Protecion Method | security lock + safety button |
| Touch Panel | Monitor + Knob |
| Wire Feeder | Single Motor Automatic "push" and "pull"(Optional） |
| Machine Weight | 48.5lbs |
| Machine Measurements | 16.14*7.48*18.86in |
| 2in1 Laser Head Weight | Approx. 680g/1.5lbs |
| Capacity |
7/64"-G12 (2.5mm) ,9/64"-G10 (3.5mm) |
|---|---|
| Laser source |
DenaliWeld Laser Source |
| Functional model |
Welding / Seam Cleaning |
| Cooler |
Air cooling |
| Laser wavelength |
1060-1100nm |
| Rated current |
12A |
| Power frequency |
50/60Hz |
| Supply voltage |
1Phase 208-230V |
| Wire feeder |
Optional |
| Machine weight |
Approx. 36lbs |
