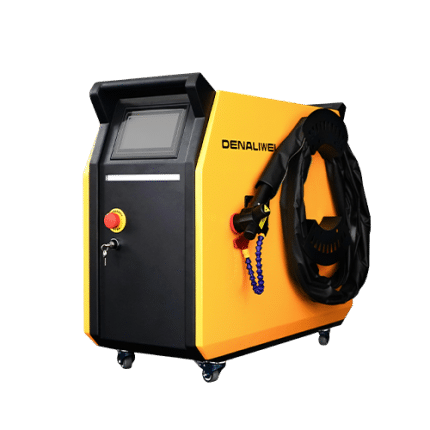

1500W Air-Cooled Laser Welding Machine
$21,999.00
- Welding Capacity: 4.5mm
- Continuous light out over 4 hours
- Unique Air Cooled Fiber Laser Technology
- 1500 Watt
- 32.52*17.074*26.44in
826*433.5*671.5mm - Ergonomic Laser head
- 220V 1 Phase
- 10m Cable
- Weld/Clean/Seam cleaning
- Separate wire feeder included
Out of stock
Basic Advantages
Introducing the Jet Series Portable Laser Welders – engineered with precision and innovation. Our patented CUAL mosaic laser source ensures reliable continuous operation in extreme environments, ranging from -10°C to 40°C (14°F to 104°F).
Key Features:
- Compact & Lightweight:Weighing only 90 pounds, the Jet Series is the smallest and lightest portable laser welder available.
- Modular Design:Easy maintenance and repair with a user-friendly modular structure.
- Versatile Functionality:Three-in-one capabilities include Welding, Cleaning, and Seam Cleaning.
- Seam Tracking (Optional):Enhance precision with an optional seam tracking system.
- User-Friendly Operation:All parameters are pre-set for effortless, one-click operation.
- Data Tracking:Integrated welding data acquisition system for monitoring operations and calculating costs.
- Automation Ready: Seamlessly switch to Cobot/Robot automation with DENALIWELD ROBOX™ at the touch of a button.
Experience the future of portable laser welding with the Jet Series – precision, portability, and power, redefined.
Main Components
DenaliWeld Laser Source
Experience precision and power with the DenaliWeld Laser Source—delivering accurate output and consistently operating at full power.
- Patented CUAL Mosaic Laser Source: Ensures continuous, reliable performance across a wide temperature range of -10℃ to 40℃ (14℉ to 104℉), maintaining stability under demanding conditions.
- Advanced Laser Control System: Designed in-house by DenaliWeld, this system produces a smooth output curve, enhancing weld quality and delivering superior performance.
Built for accuracy, durability, and efficiency—DenaliWeld sets the standard for high-performance laser technology.
DenaliWeld Welding Control System
- Intuitive Controls: All parameters can be quickly adjusted, allowing for seamless operation and faster setup.
- Flexible Laser Positioning: Effortlessly adjust the laser position without worrying about laser deviation, ensuring precision every time.
- Advanced Safety Features: Built-in safety settings provide enhanced protection for both users and observers, ensuring a safer working environment.
- One-Click Welding：
DenaliWeld Laser Welding Head
Experience versatility and precision with the DenaliWeld 3-in-1 Multifunctional Laser Welding Head, designed to deliver superior performance and ease of use.
DenaliWeld Wire Feeder
Designed for precision and ease of use, the DenaliWeld Wire Feeder seamlessly integrates with your welding system to deliver consistent performance.
- Enhanced Wire Capacity: The newly designed system supports wire feeding up to 2mm (5/64), accommodating a wider range of welding applications.
- Double Wire Feeding: Offers dual-wire feeding capability, increasing efficiency and flexibility for complex welding tasks.
- Seamless Integration: Specifically designed to complementthe DenaliWeld laser welding machine, ensuring smooth operation and optimal performance.
- User-Friendly Operation: Equipped with a physical control button for easy operation, even while wearing welding gloves—ensuring quick adjustments and enhanced convenience.
Technical Parameter
| Item | JET1500 | JET2000 | JET3000 |
| Laser Power | 1500W | 2000W | 3000W |
| Operating System | 3-in-1 / Cleaning | 3-in-1 / Cleaning | 3-in-1/Cleaning |
| Laser Wavelength | 1060-1100 nm | 1060-1100 nm | 1060-1100 nm |
| Fiber Length | Approx. 10 m (32.8 ft) | Approx. 10 m (32.8 ft) | Approx. 10 m (32.8 ft) |
| Operating Mode | Continuous/Modulated | Continuous/Modulated | Continuous/Modulated |
| Oscillation Operation Mode | Spot, Line | Spot, Line | Spot, Line |
| Positioning | Laser red dot | Laser red dot | Laser red dot |
| Air Pressure | 10-15 L/min (0.35-0.53 ft³/min) | 10-15 L/min (0.35-0.53 ft³/min) | 10-15 L/min (0.35-0.53 ft³/min) |
| Voltage | AC220V ±10% | AC220V ±10% | AC380V±10% |
| Power Consumption | 6.5kW | 7.7kW | 9.2kW |
| Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Current | 29A/10A | 35A/14A | 14A |
| Focus Lenght | 150 mm (5.91 in) | 150 mm (5.91 in) | 150mm (5.91 in) |
| Welding Speed | 0-80 cm/min (0-31.5 in/min) | 0-90 cm/min (0-35.4 in/min) | 0-105 cm/min (0-41.3 in/min) |
| Cooling System | Air cooling | ||
| Laser Protecion Method | Security lock + safety button | ||
| Touch Panel | Monitor + PLC | ||
| Wire Feeder | Single/Double Motor Automatic "push" and "pull" | ||
| Wire Thickness (wire feeder) | 0.8 mm, 1.0 mm, 1.2 mm, 1.6 mm, 2.0 mm (0.030", 0.035", 0.045", 1/16", 5/64") | ||
| Machine Weight | Approx. 68kg/150lb | Approx. 74kg/163lb | Approx. 83kg (181 lb) |
| Machine Measurements | Height 736 mm (28.9 in), Width 433 mm (17 in), Length 883 mm (34.8 in) | Height 736 mm (28.9 in), Width 433 mm (17 in), Length 883 mm (34.8 in) | Height 696 mm (27.4 in), Width 493 mm (19.4 in), Length 936 mm (36.8 in) |
| 3-in-1 Laser Head Weight | Approx. 900 g (1.98 lb) | ||
| Cleaning Head | Approx. 980 g (2.16 lb) |
| Power |
1500W |
|---|---|
| Laser source |
DenaliWeld Laser Source |
| Functional model |
Welding/Seam Cleaning/Cleaning |
| Cooler |
Air cooling |
| Laser wavelength |
1060-1100nm |
| Rated current |
29A/10A |
| Power Consumption |
6.5KW |
| Power frequency |
50/60Hz |
| Supply voltage |
AC220V/380V±5% |
| Wire feeder |
Standard |
